6kV to 30kV Copper Conductor XLPE Insulated PVC Sheathed Non-magnetic Metal Tape Armored Single Core Power Cable YJV62

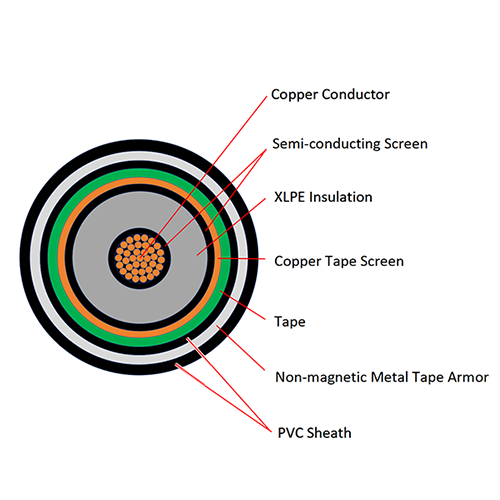

Construction:
Model: YJV62;
Voltage: 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 18/20KV, 18/30KV;
Conductor: Copper Conductor;
Insulation: XLPE;
Inner Sheath: PVC;
Armor: Non-magnetic Metal Tape Armor;
Outer Sheath: PVC.
Overview
Operation Characteristics:
XLPE insulation: the long-term allowable working temperature of conductor shall not exceed 90℃, and the maximum temperature of conductor shall not exceed 250℃ in case of short circuit(the longest duration shall not exceed 5 seconds)
Reference Outer Diameter and Approximate Weight of 6kV to 30kV Copper Conductor XLPE Insulated PVC Sheathed Non-magnetic Metal Tape Armored Single Core Power Cable YJV62:
| 3.6/6 kV YJV62 | ||
| Number of cores × nominal cross-sectional area (mm²) | Reference outer diameter (mm) | Reference weight (kg/km) |
| 1×25 | 19.6 | 718 |
| 1×35 | 20.6 | 839 |
| 1×50 | 22.0 | 1002 |
| 1×70 | 23.7 | 1242 |
| 1×95 | 25.4 | 1540 |
| 1×120 | 26.8 | 1818 |
| 1×150 | 28.5 | 2137 |
| 1×185 | 30.2 | 2520 |
| 1×240 | 32.9 | 3115 |
| 1×300 | 37.0 | 4148 |
| 1×400 | 40.5 | 5141 |
| 1×500 | 44.6 | 6349 |
| 1×630 | 48.8 | 7854 |
| 6/6kV and 6/10kV YJV62 | ||
| Number of cores × nominal cross-sectional area (mm²) | Reference outer diameter (mm) | Reference weight (kg/km) |
| 1×25 | 21.6 | 809 |
| 1×35 | 22.6 | 933 |
| 1×50 | 23.9 | 1100 |
| 1×70 | 25.6 | 1346 |
| 1×95 | 27.4 | 1649 |
| 1×120 | 28.8 | 1931 |
| 1×150 | 30.5 | 2256 |
| 1×185 | 32.2 | 2644 |
| 1×240 | 35.9 | 3566 |
| 1×300 | 38.2 | 4242 |
| 1×400 | 41.4 | 5227 |
| 1×500 | 45.0 | 6385 |
| 1×630 | 49.2 | 7893 |
| 8.7/10kV and 8.7/15kV YJV62 | ||
| Number of cores × nominal cross-sectional area (mm²) | Reference outer diameter (mm) | Reference weight (kg/km) |
| 1×25 | 23.8 | 915 |
| 1×35 | 24.9 | 1053 |
| 1×50 | 26.1 | 1214 |
| 1×70 | 28.0 | 1478 |
| 1×95 | 29.6 | 1775 |
| 1×120 | 31.2 | 2076 |
| 1×150 | 32.7 | 2393 |
| 1×185 | 35.8 | 3131 |
| 1×240 | 38.3 | 3755 |
| 1×300 | 40.5 | 4440 |
| 1×400 | 43.8 | 5438 |
| 1×500 | 47.6 | 6634 |
| 1×630 | 51.6 | 8133 |
| 12/20kV YJV62 | ||
| Number of cores × nominal cross-sectional area (mm²) | Reference outer diameter (mm) | Reference weight (kg/km) |
| 1×25 | 25.8 | 1027 |
| 1×35 | 27.0 | 1170 |
| 1×50 | 28.2 | 1334 |
| 1×70 | 30.1 | 1605 |
| 1×95 | 31.7 | 1907 |
| 1×120 | 33.3 | 2214 |
| 1×150 | 36.0 | 2867 |
| 1×185 | 37.9 | 3300 |
| 1×240 | 40.3 | 3933 |
| 1×300 | 42.7 | 4646 |
| 1×400 | 45.9 | 5637 |
| 1×500 | 49.7 | 6846 |
| 1×630 | 53.9 | 8386 |
| 18/20kV and 18/30kV YJV62 | ||
| Number of cores × nominal cross-sectional area (mm²) | Reference outer diameter (mm) | Reference weight (kg/km) |
| 1×35 | 32.5 | 1504 |
| 1×50 | 33.9 | 1694 |
| 1×70 | 37.0 | 2323 |
| 1×95 | 38.6 | 2656 |
| 1×120 | 40.1 | 2992 |
| 1×150 | 41.7 | 3361 |
| 1×185 | 43.6 | 3813 |
| 1×240 | 46.1 | 4470 |
| 1×300 | 48.4 | 5188 |
| 1×400 | 51.6 | 6209 |
| 1×500 | 55.4 | 7453 |
| 1×630 | 59.7 | 9060 |
