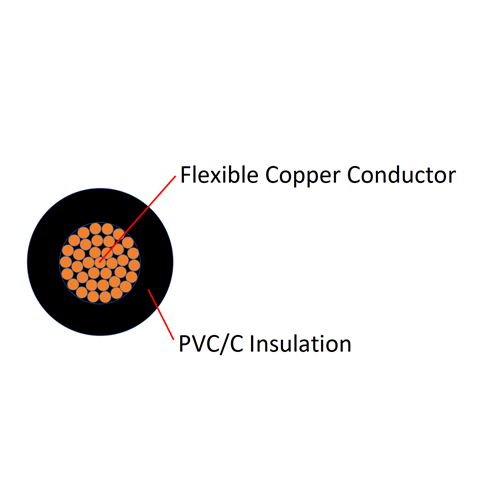

60227 IEC 02(RV) Single-core Non-sheathed Cable with Flexible Conductor for General Purposes

Rated voltage: 450/750V;

Rated temperature: 70℃;

Conductor: 1.5-240mm², Class 5 conductor in GB/T 3956-2008;

Insulation: Lead free polyvinyl chloride (PVC/C-type polyvinyl chloride mixture).

Overview

Specification of 60227 IEC 02(RV) Cable:

Bending radius: When fixedly laid, the allowable bending radius for cables with an outer diameter (D) less than 25mm shall not be less than 4D, and for cables with an outer diameter (D) of 25mm or more, the allowable bending radius shall not be less than 6D;

Fixed installation temperature: -30℃ to +80℃;

Test voltage: 2500V;

Flame retardant: Complies with IEC 60332-1-2 standard and GB/T 18380.12-2008 standard;

Purpose: Used for electrical devices, instruments, telecommunications equipment, power lighting and other circuits with AC rated voltage of 450/750V or below or DC voltage of 1000V or below;

Installation methods: exposed laying, conduit laying, trunking laying, etc;

Standard: GB/T 5023.3-2008;

Certification: CCC certificate.

Technical Details of 60227 IEC 02(RV) Cable:

Conductor Nominal Cross Section Area mm²	Insulation Thickness Specified Value mm	Average outside diameter mm		Minimum Insulation Resistance at 70 ℃ (MΩ ·km)
Conductor Nominal Cross Section Area mm²	Insulation Thickness Specified Value mm	Lower Limit	Upper Limit	Minimum Insulation Resistance at 70 ℃ (MΩ ·km)
1.5	0.7	2.8	3.4	0.010
2.5	0.8	3.4	4.1	0.009
4	0.8	3.9	4.8	0.007
6	0.8	4.4	5.3	0.006
10	1.0	5.7	6.8	0.0056
16	1.0	6.7	8.1	0.0046
25	1.2	8.4	10.2	0.0044
35	1.2	9.7	11.7	0.0038
50	1.4	11.5	13.9	0.003:
70	1.4	13.2	16.0	0.0032
95	1.6	15.1	18.2	0.0032
120	1.6	16.7	20.2	0.0029
150	1.8	18.6	22.5	0.0029
185	2.0	20.6	24.9	0.0029
240	2.2	23.5	28.4	0.0028
