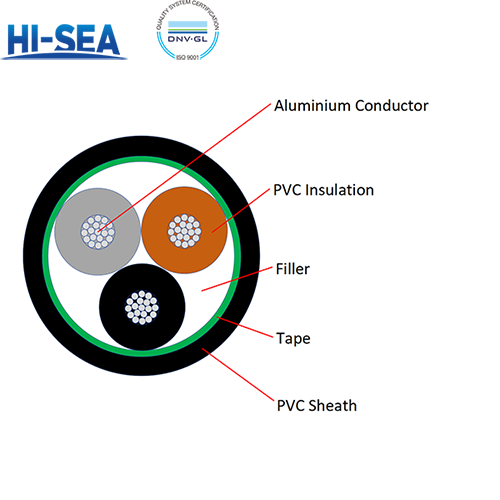

0.6/1KV Aluminium Conductor PVC Insulated PVC Sheathed Multi-core Power Cable VLV

Construction:

Model: VLV;

Voltage: 0.6/1KV;

Conductor: Aluminium Conductor;

Insulation: PVC;

Sheath: PVC.

Overview

Operation Characteristics:

PVC insulation: the long-term allowable working temperature of conductor shall not exceed 70℃, and the maximum temperature of conductor shall not exceed 160℃ in case of short circuit(the longest duration shall not exceed 5 seconds)

Reference Outer Diameter and Approximate Weight of Multi-core Power Cable VLV:

Number of cores × nominal cross-sectional area (mm²)	Reference outer diameter(mm)	Reference weight (kg/km)
2×1.5	10.2	-
2×2.5	11.0	127
2×4	12.6	168
2×6	13.8	199
2×10	16.2	263
2×16	17.8	334
2×25	20.8	444
2×35	22.8	543
2×50	19.9	565
2×70	22.4	729
2×95	25.3	954
2×120	27.7	1136
2×150	31.3	1417
2×185	34.6	1732
2×240	38.7	2209
2×300	42.7	2716
2×400	48.2	3424
3×1.5	10.7	-
3×2.5	11.6	148
3×4	13.3	198
3×6	4.6	238
3×10	17.2	318
3×16	18.9	410
3×25	22.2	553
3×35	24.3	681
3×50	23.3	812
3×70	26.5	1059
3×95	29.9	1383
3×120	32.9	1647
3×150	37.1	2048
3×185	41.1	2513
3×240	45.9	3200
3×300	50.9	3959
3×400	57.5	4951
4×1.5	11.5	-
4×2.5	12.5	174
4x4	14.4	237
4×6	15.9	288
4×10	8.8	386
4×16	20.7	501
4×25	24.4	685
4×35	26.8	851
4×50	26.4	1048
4×70	30.2	1370
4×95	34.0	1795
4×120	37.6	2157
4×150	42.4	2680
4×185	47.0	3281
4×240	52.4	4182
4×300	58.2	5176
4×400	65.9	6507
5×1.5	12.4	-
5×2.5	13.5	202
5×4	15.7	280
5×6	17.3	341
5×10	20.5	460
5×16	22.7	601
5×25	26.8	828
5×35	29.7	1046
5×50	29.6	1300
5×70	33.6	1683
5×95	38.0	2226
5×120	41.9	2654
5×150	47.4	3318
5×185	52.4	4057
5×240	58.6	5173
5×300	65.0	6404
3×2.5+1×1.5	12.3	167
3×4+1×2.5	14.0	220
3×6+1×4	15.5	275
3×10+1×6	18.1	361
3×16+1×10	20.3	472
3×25+1×16	23.5	639
3×35+1×16	25.3	761
3×50+1×25	25.8	979
3×70+1×35	29.1	1251
3×95+1×50	32.5	1620
3×120+1×70	35.8	1956
3×150+1×70	40.1	2361
3×185+1×95	44.4	2925
3×240+1×120	49.6	3695
3×300+1×150	55.1	4574
3×400+1×185	62.0	5698
3×2.5+2×1.5	13.1	189
3×4+2×2.5	14.8	248
3×6+2×4	16.7	316
3×10+2×6	19.2	410
3×16+2×10	21.8	546
3×25+2×16	25.1	734
3×35+2×16	26.8	856
3×50+2×25	31.2	1156
3×70+2×35	35.4	1515
3×95+2×50	35.1	1824
3×120+2×70	39.0	2249
3×150+2×70	42.8	2652
3×185+2×95	47.7	3302
3×240+2×120	53.3	4157
3×300+2×150	59.1	5153
4×2.5+1×1.5	13.3	195
4×4+1×2.5	15.2	264
4×6+1×4	17.0	327
4×10+1×6	19.9	436
4×16+1×10	22.3	573
4×25+1×16	25.9	779
4×35+1×16	28.1	942
4×50+1×25	28.6	1176
4×70+1×35	32.2	1519
4×95+1×50	36.5	2019
4×120+1×70	40.7	2460
4×150+1×70	45.2	2980
4×185+1×95	50.0	3666
4×240+1×120	55.8	4649
4×300+1×150	62.0	5764
